| Brand Name : | REINFORCE |
| Model Number : | REINFORCE-34 |
| Certification : | ISO9001 |
| Price : | USD 1.7-3 /square meter |
| Payment Terms : | T/T |
| Supply Ability : | 2000 Square meters per week |
| Delivery Time : | 14-20 works day |

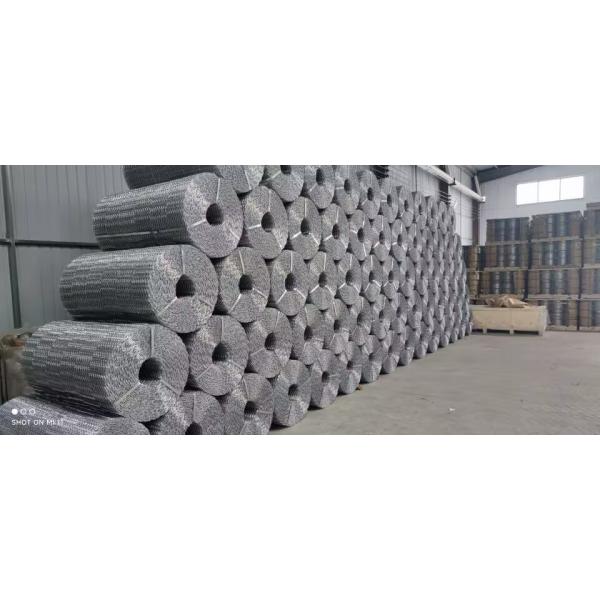

Anti Corrosion Six Lines Concrete Weight Coating Mesh Welded Galvanized Wire
Welded Galvanized Wire Concrete Weight Coating Mesh Description:
Welded Galvanized Wire Pipeline Reinforced Mesh is a welded mesh commonly used for the reinforcement of concrete weight coating pipelines. This kind of Mesh is a popular product in the world industry and is used for concrete weight coating of offshore oil and gas pipelines. Marine Steel Mesh is suitable for compression and impact coating processes. The wires are deeply curled to facilitate the application of concrete coating. The material used is galvanized mild steel. It can be cold-dip galvanized wire or hot-dip galvanized wire deeply curled to facilitate the application in concrete. Three specifications of Marine Steel Mesh are available with traditional 10 wire, 8 wire or 6 wire mesh system. Pipeline Steel Mesh is mainly used for concrete weight coating of submarine pipelines. In addition to the conventional specifications, we also supply other specifications that can be customized according to customer requirements.
Welded Galvanized Wire Concrete Weight Coating Mesh Specifications:
| Brand Name | REINFORCE |
| Product Name | Pipeline Reinforced Mesh |
| Material | Cold or hot galvanized wire |
| Roll Weight | 41kg ,82kg or custom |
| Bundle Packing Way | 2 rolls,5 rolls, 6 rolls, etc. |
| Advantages | Strong welded,high tensile strength |
| Wire Diameter | 1.66mm-2.85mm |
| Middle Line Wire Pitch | 25.4mm |
| Cross Wire Pitch | 67mm or 92.4mm |
| Both Sides Line Wire Pitch | 25.4mm or 50.8mm |
Welded Galvanized Wire Concrete Weight Coating Mesh Features:
l High quality material wire
l Standard wire diameter and hole size
l Enough roll width and roll length
l High tensile strength
l Strong anti-corrosion, anti-rust
l Strong welded point
l High degree of flexibility
l Long service life
l Easy to install
l Cost savings
Welded Galvanized Wire Concrete Weight Coating Mesh Applications:
This technique is highly effective in preventing corrosion in water distribution systems,sewage treatment plants,and desalination facilities.
Concrete weight coating lining with wire mesh safeguards pipelines in chemical plants,refineries,and petrochemical facilities,protecting them from aggressive chemicals and corrosive substances.
Pipeline reinforced mesh used in mining operations and ore processing plants can benefit from the exceptional corrosion resistance provided by CWC lining with wire mesh.
Welded Galvanized Wire Concrete Weight Coating Mesh Package:
1. 1 roll packing in steel belt
2. 5 rolls-6 rolls packing in big bundle
3. Load in bulk
4. Load in pallet
5. Load in wooden box
6. Same as your require
|
|
